VW Golf Mk4 Problems: MAF, Central Locking & Oil Use
7 min read
The VW Golf Mk4, produced from 1997 to 2003, represented a significant leap forward for Volkswagen with improved build quality and refined engineering. However, as these vehicles age, certain common problems have emerged. This comprehensive guide covers the most frequent issues reported by Golf Mk4 owners across South Africa, from engine performance problems to electrical faults — covering the 1.6 and 2.0 petrol cars, the AGU/AUM 1.8T, and the 1.9 TDI.
TL;DR
- The Golf Mk4 (1997–2003) is solid but ages into predictable faults — most are sensor or electrical issues, not catastrophic.
- Low-RPM stuttering and hard starting usually trace back to the MAF sensor, crank sensor or coil packs — a VAG-COM scan saves guesswork.
- 1.6L high oil consumption is the one expensive fault: worn rings often mean a rebuild or a used engine, not a quick fix.
- Many central-locking and instrument-cluster faults have free fixes (passenger-door reset, battery disconnect) before you spend a cent.
- VW dealer diagnostics can cost R6,000 — an independent VW specialist is almost always more economical.

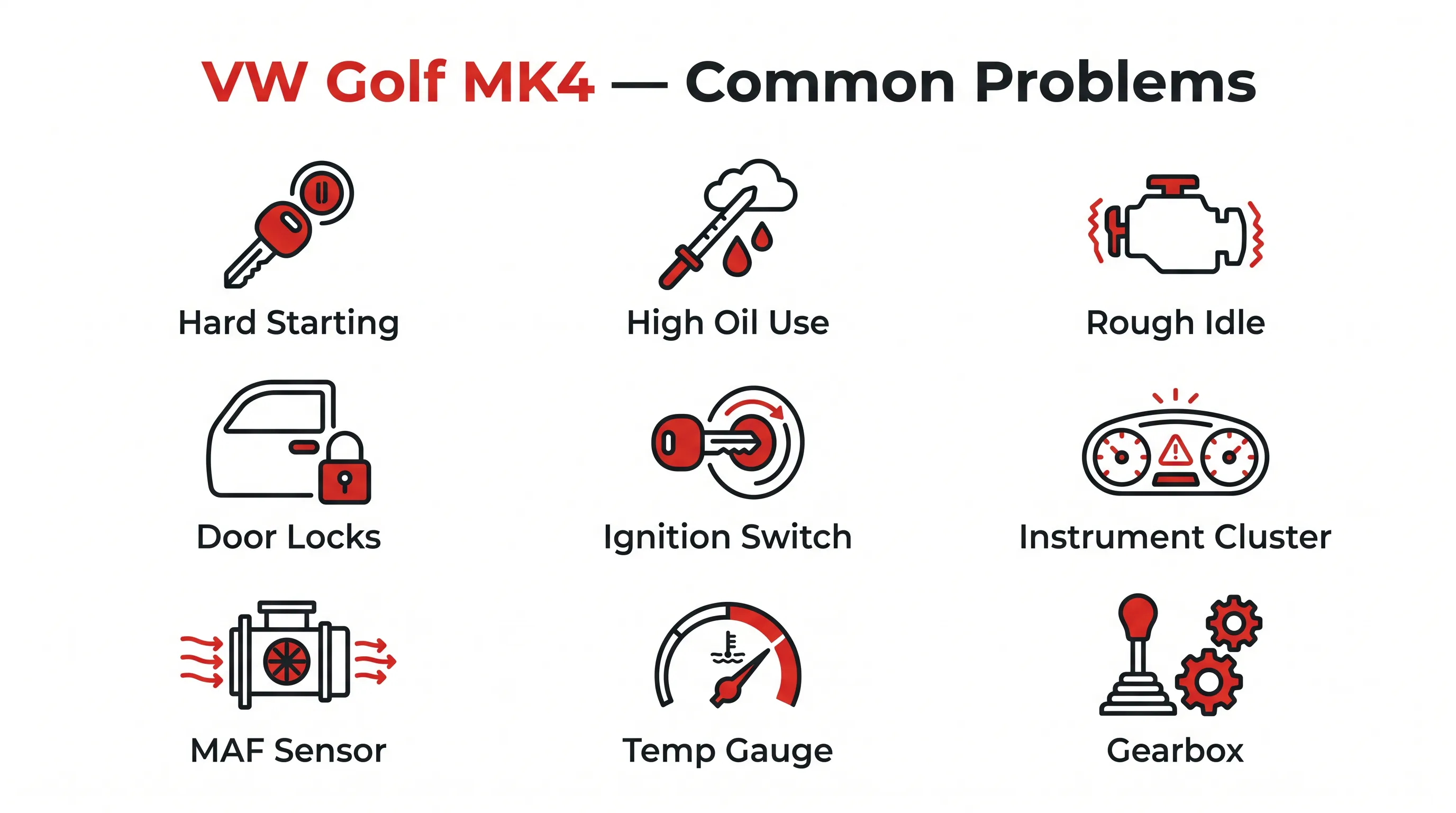

VW Golf Mk4 at a Glance — Common Problems & SA Repair Costs
| # | Problem | Typical SA cost | Severity |
|---|---|---|---|
| 1 | Low RPM stuttering / hard starting (MAF + crank sensor) | R900–R3,500 | Medium |
| 2 | High oil consumption — 1.6L (rebuild / used engine) | R5,000+ | High |
| 3 | TDI idle / over-rev (fuel temp sensor, pump timing) | R1,500–R6,000 | High |
| 4 | Key fob & central locking (reset first, then pump/actuator) | R0–R2,500 | Low |
| 5 | Ignition switch wear (replace assembly) | R800–R2,000 | Medium |
| 6 | Instrument cluster display fail (battery reset can save it) | R0–R9,000 | Medium |
| 7 | VW dealership gearbox diagnosis quote | R6,000 | High |
VW Golf Mk4 common problems and indicative South African repair costs.
Engine Performance Issues
Low RPM Stuttering & Hard Starting
Symptoms
- Car stutters at low RPM
- Hard starting or extended cranking
- Hunting idle between 700–900 RPM
- Power loss during acceleration
- Intermittent jerking at highway speeds
Common Causes
- Faulty MAF (Mass Air Flow) sensor
- Crank position sensor failure
- Worn ignition coil packs
- Contaminated plug leads
- Water temperature sensor issues
Diagnostic Approach
- VAG-COM scan — essential for proper diagnosis of modern VW systems
- MAF sensor testing — most common culprit for these symptoms
- Crank sensor check — critical for starting and idle issues
- Coil pack testing — test each cylinder individually
- Visual inspection — check all vacuum hoses and connections
Ignition Coil Pack & Plug Leads
Worn coil packs and contaminated plug leads are the usual cause of low-RPM stutter and misfires on the Mk4. Used genuine VW coils and leads are a fraction of dealer prices — tell us your engine code and we'll source a matching set from our used VW Golf parts stock.
High Oil Consumption (1.6L Engines)
Major Engine Problem
High oil consumption without visible leaks indicates serious internal engine damage. This is expensive to repair and may require engine rebuild or replacement.
Warning Signs
- High oil consumption (1 litre or more per 1,000 km)
- No visible oil leaks
- Heavy smoking when engine hot
- Spark plugs fouling every 2–3 days
- Significant power loss
Root Causes
- Seized oil control rings
- Broken compression rings
- Poor maintenance history
- Use of inferior quality oil
- Excessive engine wear
Repair reality: one owner reported paying R5,000 for attempted repairs with no improvement. Engine rebuild or replacement may be the only viable solution.

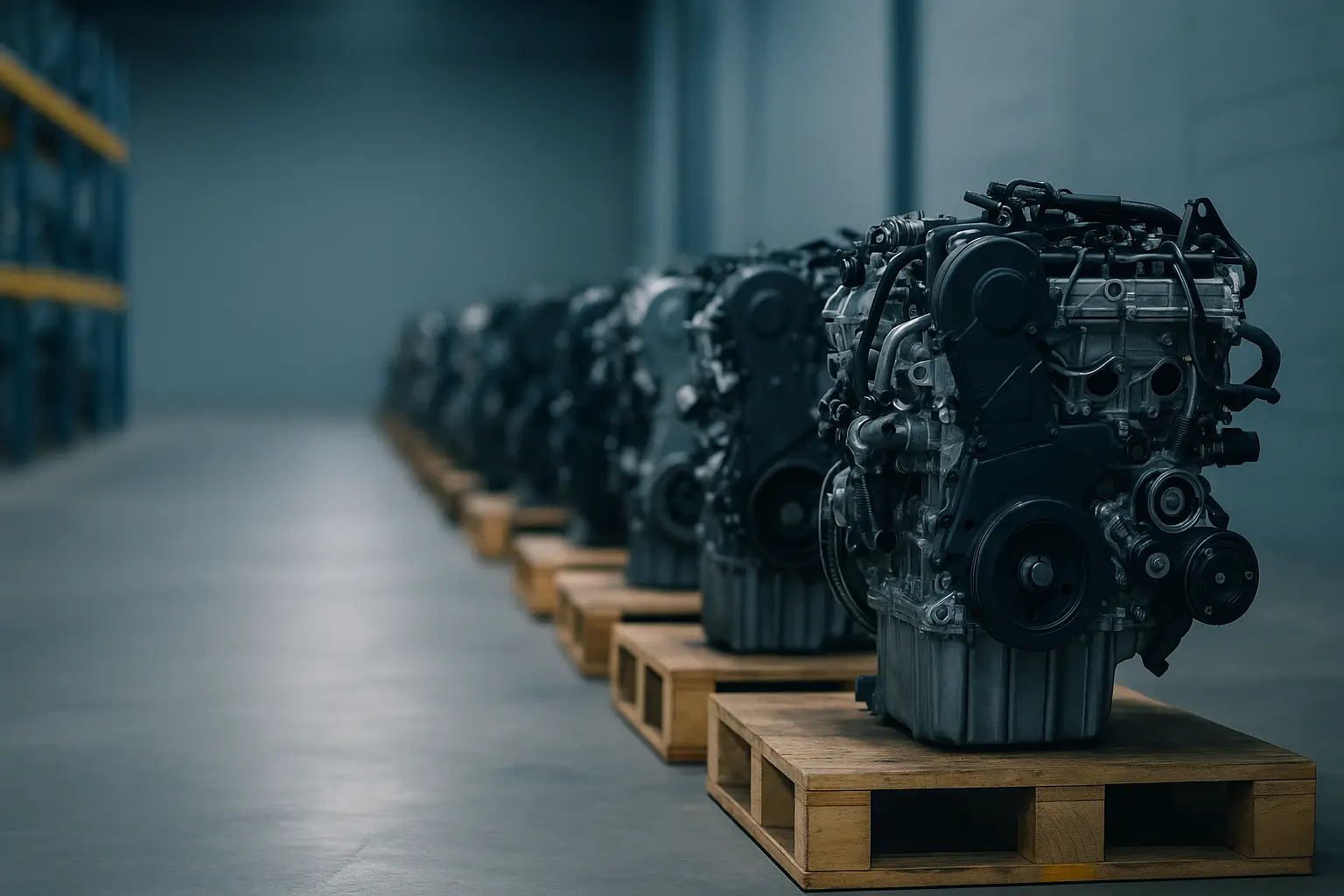

Used VW Golf Mk4 1.6L Engine
When a 1.6L is burning oil from worn rings, a tested used engine is often cheaper and faster than a full rebuild. We stock low-mileage Mk4 1.6 units and can match your exact engine code — check the used VW engines we currently have in stock before committing to a rebuild.
TDI Diesel Engine Issues
Idle Problems & Over-Revving
TDI Symptoms
- Over-revs for 5–8 seconds then dies
- Won't idle without throttle input
- Only idles when held at 1,200 RPM
- Black smoke at higher RPM
- Diagnostic code 17571 (fuel temp sensor)
TDI Causes
- Diesel pump timing misalignment
- Fuel temperature sensor failure
- Accelerator pedal wiring problems
- Faulty relay 109
- Crank sensor issues
TDI Solutions
- VCDS diagnosis — essential for TDI timing adjustment
- Fuel temperature sensor — replace if code 17571 present
- Accelerator pedal test — unplug to test for wiring issues
- Diesel pump timing — requires specialist TDI knowledge
- Relay 109 check — common failure point
TDI will not idle without your foot on it?
Crank sensors, fuel temperature sensors, relay 109 and injection pump components for the 1.9 TDI Golf Mk4, Bora and Jetta 4. Give us the engine code and we will match the right part.
Get a price →Central Locking System Issues
Key Fob & Door Lock Problems
Quick Fix — System Reset
Many Golf Mk4 central locking problems can be fixed with a simple reset: press the passenger door lock/unlock button to reset the entire system.
This free solution has fixed many cases where the key fob only opens the driver door.
Common Symptoms
- Key fob only opens driver door
- Some doors won't lock
- Door actuators clicking repeatedly
- Immobiliser starting issues
- Central locking pump noise
Progressive Solutions
- Try passenger door reset button
- Replace central locking pump
- Swap door actuators to test
- Replace ignition switch
- Check door wiring harness

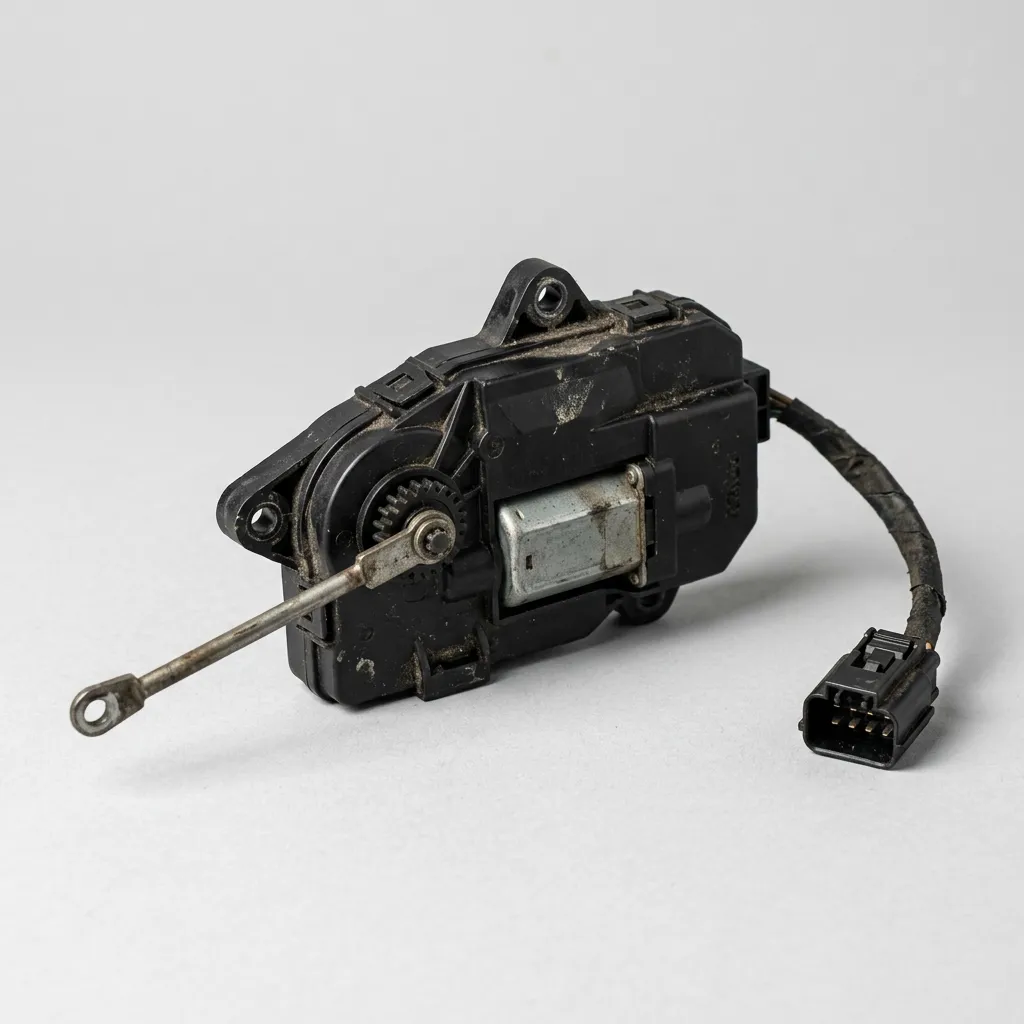

Central Locking Door Actuator
If the reset trick doesn't hold and a door still won't lock, the actuator inside that door is usually worn out. Used Mk4 actuators are inexpensive and swap straight in — tell us which door and we'll quote you a tested unit.
Ignition Switch Problems
Ignition Issues
- Must turn key in specific half-swing to start
- Full key turn causes extended cranking
- Starting position very sensitive
- Key must be held in exact position
Cause & Solution
Cause: worn electrical contacts in the ignition lock switch.
Solution: replace the entire ignition switch assembly.
Electrical System Issues
Instrument Cluster Problems
Simple ECU Reset Fix
If your instrument cluster display fails (red display area shows only red light), try disconnecting the battery for a few minutes before considering expensive repairs.
Cost saving: this free fix can save R9,000+ for a new cluster replacement.
Cluster Symptoms
- Red display area only shows red light
- No temperature information
- Missing fuel consumption data
- Sudden failure (works morning, fails afternoon)
Reset Procedure
- Turn off engine and remove key
- Disconnect negative battery terminal
- Wait 5–10 minutes
- Reconnect battery terminal
- Start engine and check display
MAF Sensor & Earth Connection Issues
Multiple System Faults
- Airbag light intermittent
- Multiple diagnostic trouble codes
- Communication errors between modules
- MAF sensor failures
Check Earth Connections
- Battery earth strap
- Gearbox earth connection
- Starter motor earth
- Engine bay earth points
- Clean all contact surfaces
Cooling System Issues
Temperature Gauge & Thermostat Problems
Temperature Issues
- Gauge only reaches 50–60°C
- Low reading after 50 km highway driving
- Irregular idle when cold
- Extended warm-up time
Solutions
- Replace thermostat (use genuine VW)
- Clean throttle body with brake cleaner
- Check and repair broken vacuum pipes
- Test temperature sensor
Temporary Fix Experience
One owner improved idle (720–760 RPM) by temporarily taping up a broken vacuum pipe. This demonstrates how small vacuum leaks can significantly affect engine performance.
Transmission Issues
Gearbox Problems & Diagnostic Costs
High Dealership Costs
VW South Africa quoted R6,000 just for gearbox diagnosis. Consider specialist workshops that offer more reasonable diagnostic fees and repair costs.
Transmission Symptoms
- Noise in 6th gear
- Hard shifting (automatic)
- Car shaking during gear changes
- Delayed engagement
- Slipping between gears
Recommended Approach
- Seek a specialist gearbox workshop
- Replace transmission oil and filter first
- Get a second opinion before major work
- Consider a transmission service
If a workshop confirms the box itself is worn rather than just low on oil, a tested second-hand unit is usually the cheaper route — we list current stock and pricing on our used VW gearboxes page.
R6,000 just to be told what is wrong?
Tested used manual and automatic gearboxes for the Golf Mk4, Bora and Jetta 4, plus mounts and selector cables. Send us the gearbox code and we will confirm the match before you commit.
Get a price →Prevention & Maintenance Tips
Regular Maintenance
- Use quality engine oil and change it regularly
- Clean the MAF sensor every service
- Check earth connections annually
- Service the cooling system every 2 years
- Replace spark plugs on schedule
Early Warning Signs
- Any starting difficulties — check the crank sensor
- Rough idle — clean the throttle body and MAF
- Temperature gauge reading low — check the thermostat
- Central locking issues — try the reset first
- Instrument cluster problems — battery reset
Diagnostic Investment
Investing in proper VAG-COM diagnostics is essential for Golf Mk4 ownership. Many problems can be quickly identified and often fixed with simple solutions.
Find a workshop with proper VW diagnostic equipment to avoid expensive guesswork repairs.
The Mk4 generally has better build quality than the Mk3, but noticeably more electronics to go wrong. If you are cross-shopping the older car, the Golf Mk3 problems guide covers the faults specific to that generation.
Need Golf Mk4 Parts?
From coil packs and MAF sensors to a complete used 1.6 engine — get a fast, free quote on quality used VW Golf Mk4 parts sourced from trusted SA scrapyards. Send us your parts request with your engine code and we’ll come back with pricing and availability.
Frequently asked questions
What are the most common engine problems in VW Golf Mk4?
How do I fix Golf Mk4 central locking problems?
Why won't my Golf Mk4 start properly?
How much do Golf Mk4 repairs typically cost in South Africa?
Is the Golf Mk4 reliable compared to other generations?
Should I buy a high-mileage Golf Mk4?
